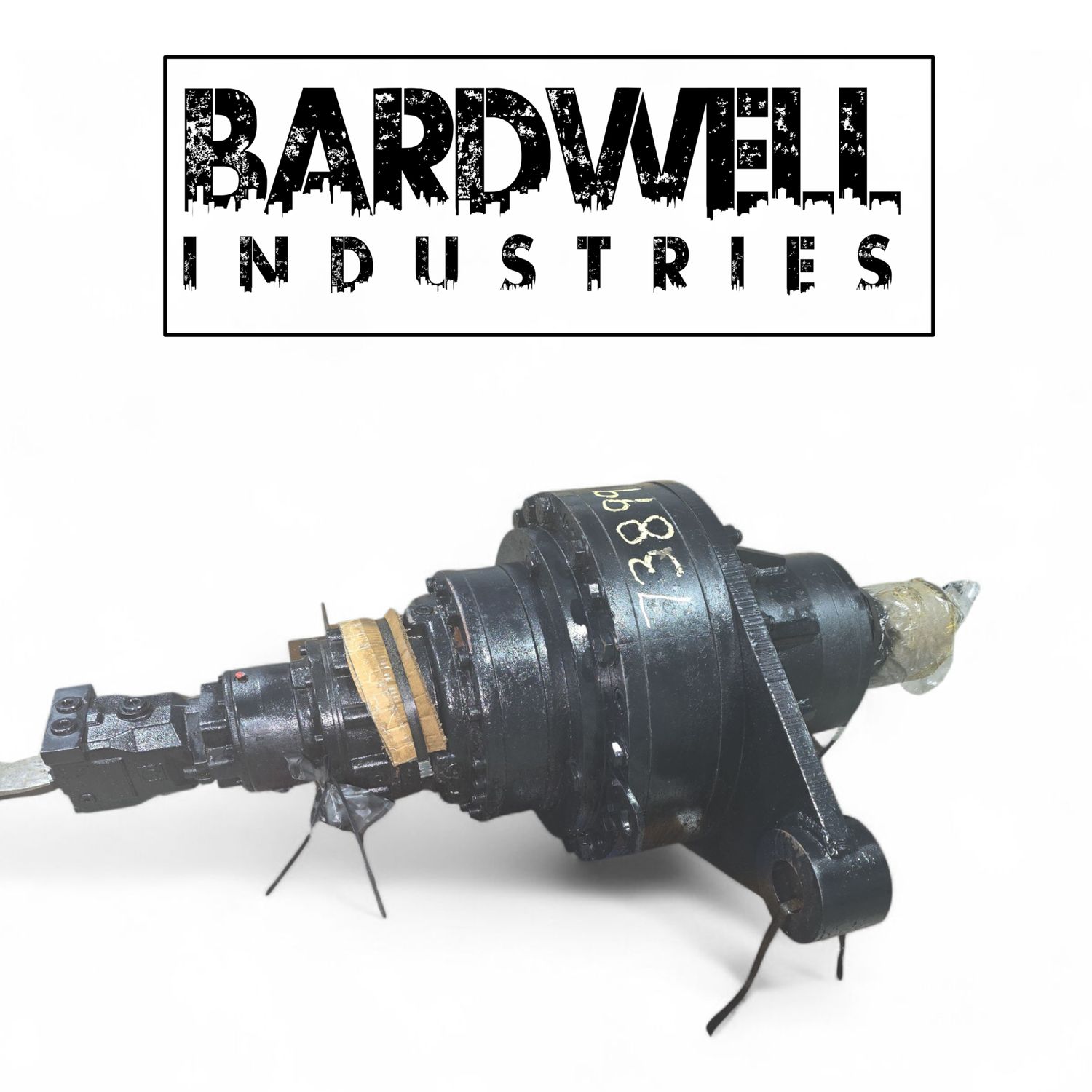

Renold P6-8004 HC Gearbox with Bondioli & Pavesi M4MF46-46 Hydraulic Motor

Heavy-Duty Industrial Drive System – Gearbox & Hydraulic Motor Package

This unit combines a robust Renold P6-8004 HC helical reduction gearbox with a high-performance Bondioli & Pavesi M4MF46-46 axial piston hydraulic motor. Designed for demanding industrial applications requiring high torque and reliable operation.

Specifications

Gearbox: Renold P6-8004 HC

• Type: Helical / bevel-helical reduction gearbox
• Series: HC Series – heavy-duty industrial range
• Torque Output: High-capacity (detailed torque specs available on request)
• Mounting: Horizontal foot mount
• Construction: Cast iron or steel case (depending on size), vibration-dampening design
• Output Shaft: Solid shaft
• Condition: Good used condition

Hydraulic Motor: Bondioli & Pavesi M4MF46-46

• Type: Fixed-displacement axial piston motor
• Displacement: 46 cm³/rev
• Pressure Rating:
  • Continuous: 250 bar
  • Intermittent: 330 bar
  • Peak: 400 bar
• Speed Range: 500 – 3600 rpm
• Shaft: SAE 15T 16/32 DP spline
• Ports: Side or rear configurations
• Suitable for: Open or closed hydraulic circuits

Applications

Ideal for use in:

• Conveyors
• Crushers
• Mixers
• Heavy mobile machinery
• Industrial drive systems requiring high torque and low speed

Location: Victoria, Australia
Shipping: Australia-wide freight available
